Anti-mixing Valve Series

YAJ-56-1

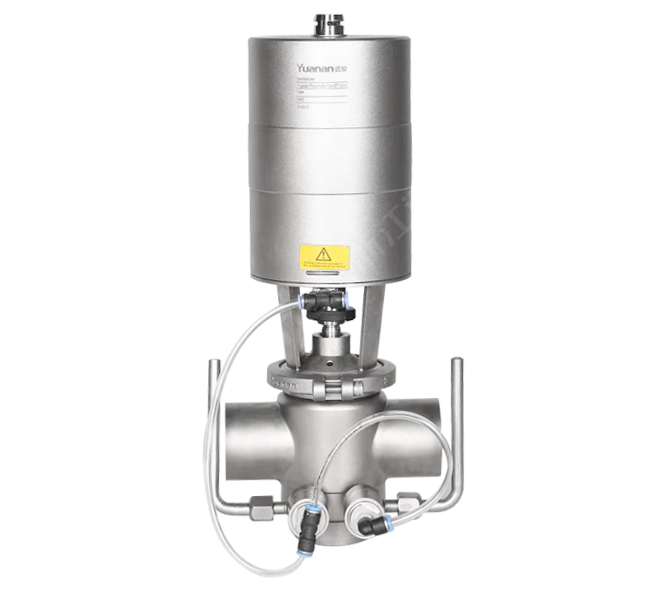

YAF External Cleaning And Anti-mixing Valve

Nominal Diameter:
⌀ 25.4 — 76.2

Valve Body Material:
304/316L

Drive Type:
Pneumatic

Sealing Materials:
EPDM

Pressure Range:
0.8Mpa

Applicable Temperature:
-10 — 95℃

Valve Body Process
Forging

Valve Body Ra Value
0.38/0.51/0.6

Connection Method
Quick Installation / Welding

YAJ-56

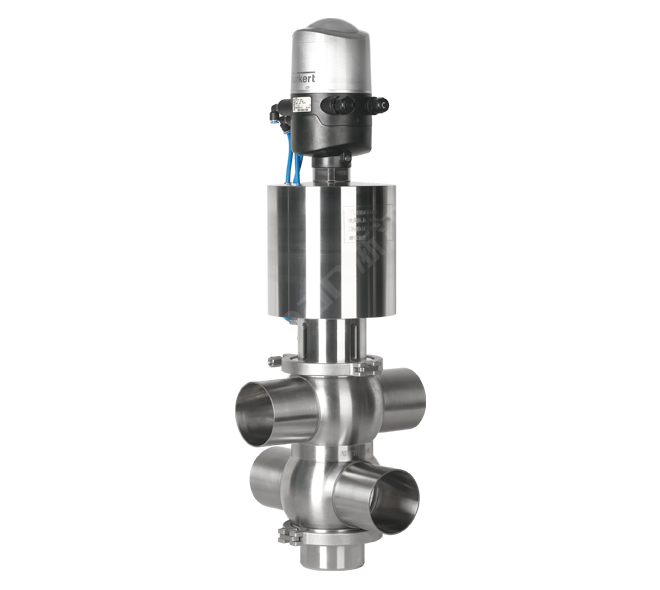

QSZF Intelligent Dual-seat Anti-mixing Valve

Nominal Diameter:
⌀ 25.4 — 125

Valve Body Material:
304/316L

Drive Type:
Pneumatic

Sealing Materials:
EPDM/FKM

Pressure Range:
0.8Mpa

Applicable Temperature:
-10 — 95℃

Valve Body Process
Forging

Valve Body Ra Value
0.38/0.51/0.6

Connection Method
Quick Installation / Welding
