Butterfly Valve Series

YAJ-01

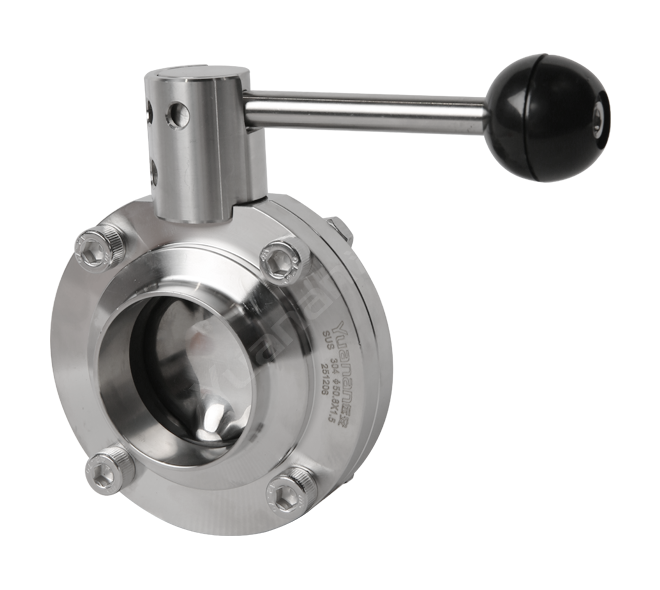

YAJ Manual Butt Welding Butterfly Valve

Nominal Diameter:
⌀ 12.7 — 203.2

Valve Body Material:
304/316L/2205

Drive Type:
Manual

Sealing Materials:
EPDM/MVQ/FKM

Pressure Range:
1.0Mpa

Applicable Temperature:
-10 — 95℃

Valve Body Process
Forging

Valve Body Ra Value
0.38/0.51/0.6

Connection Method
Quick Installation / Welding / Thread

YAJ-07

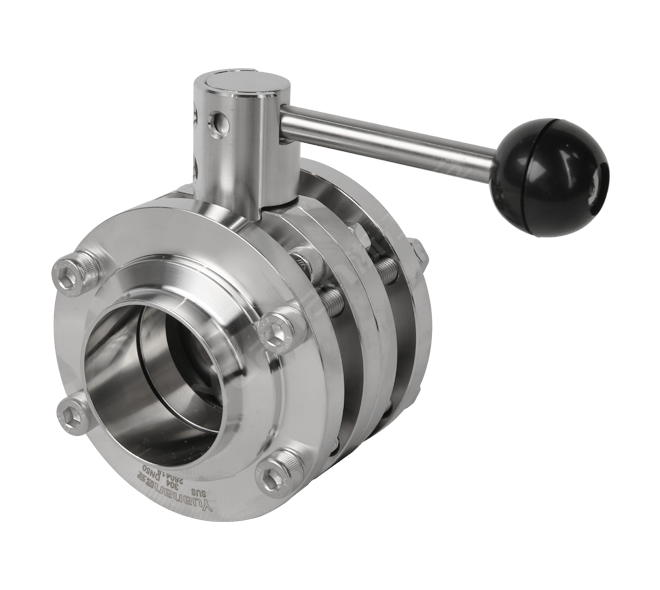

YAJD Manual Wafer Butterfly Valve

Nominal Diameter:
⌀ 12.7 — 203.2

Valve Body Material:
304/316L/2205

Drive Type:
Manual

Sealing Materials:
EPDM/MVQ/FKM

Pressure Range:
1.0Mpa

Applicable Temperature:
-10 — 95℃

Valve Body Process
Forging

Valve Body Ra Value
0.38/0.51/0.6

Connection Method
Quick Installation / Welding / Thread

YAJ-02

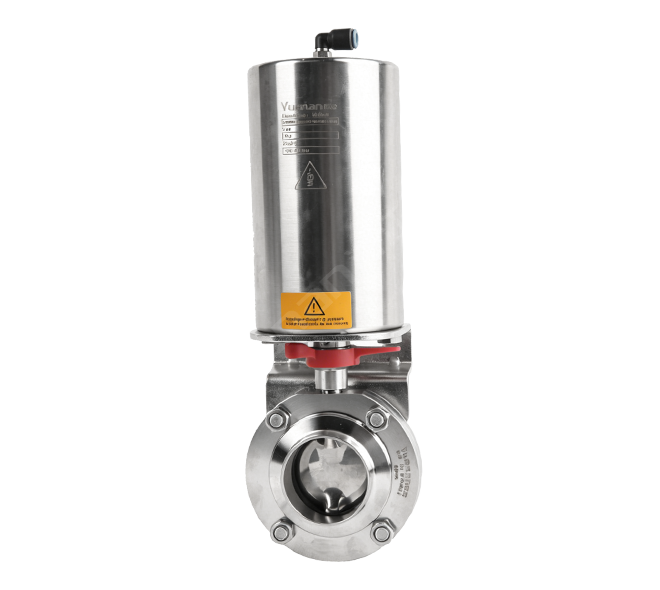

YAJ Pneumatic Butterfly Valve

Nominal Diameter:
⌀ 12.7 — 203.2

Valve Body Material:
304/316L/2205

Drive Type:
Pneumatic

Sealing Materials:
EPDM/MVQ/FKM

Pressure Range:
1.0Mpa

Applicable Temperature:
-10 — 95℃

Valve Body Process
Forging

Valve Body Ra Value
0.38/0.51/0.6

Connection Method
Quick Installation / Welding / Thread

YAJ-21

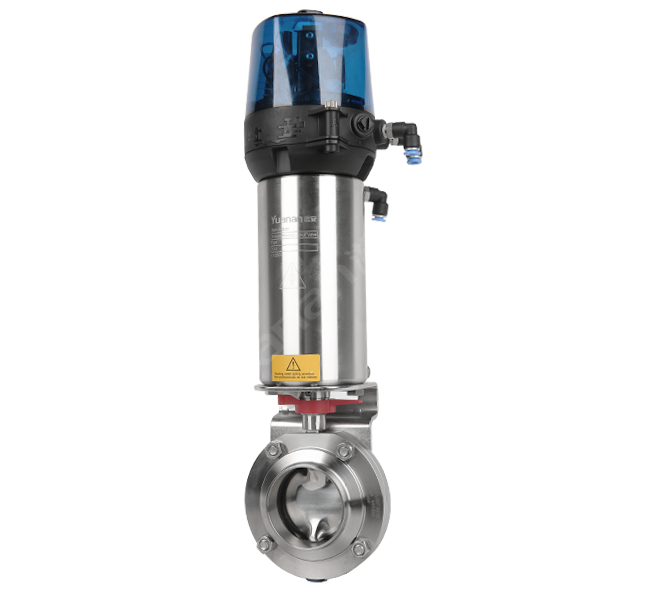

YAJZ Intelligent Pneumatic Butterfly Valve

Nominal Diameter:
⌀ 12.7 — 203.2

Valve Body Material:
304/316L/2205

Drive Type:
Pneumatic

Sealing Materials:
EPDM/MVQ/FKM

Pressure Range:
1.0Mpa

Applicable Temperature:
-10 — 95℃

Valve Body Process
Forging

Valve Body Ra Value
0.38/0.51/0.6

Connection Method
Quick Installation / Welding / Thread
